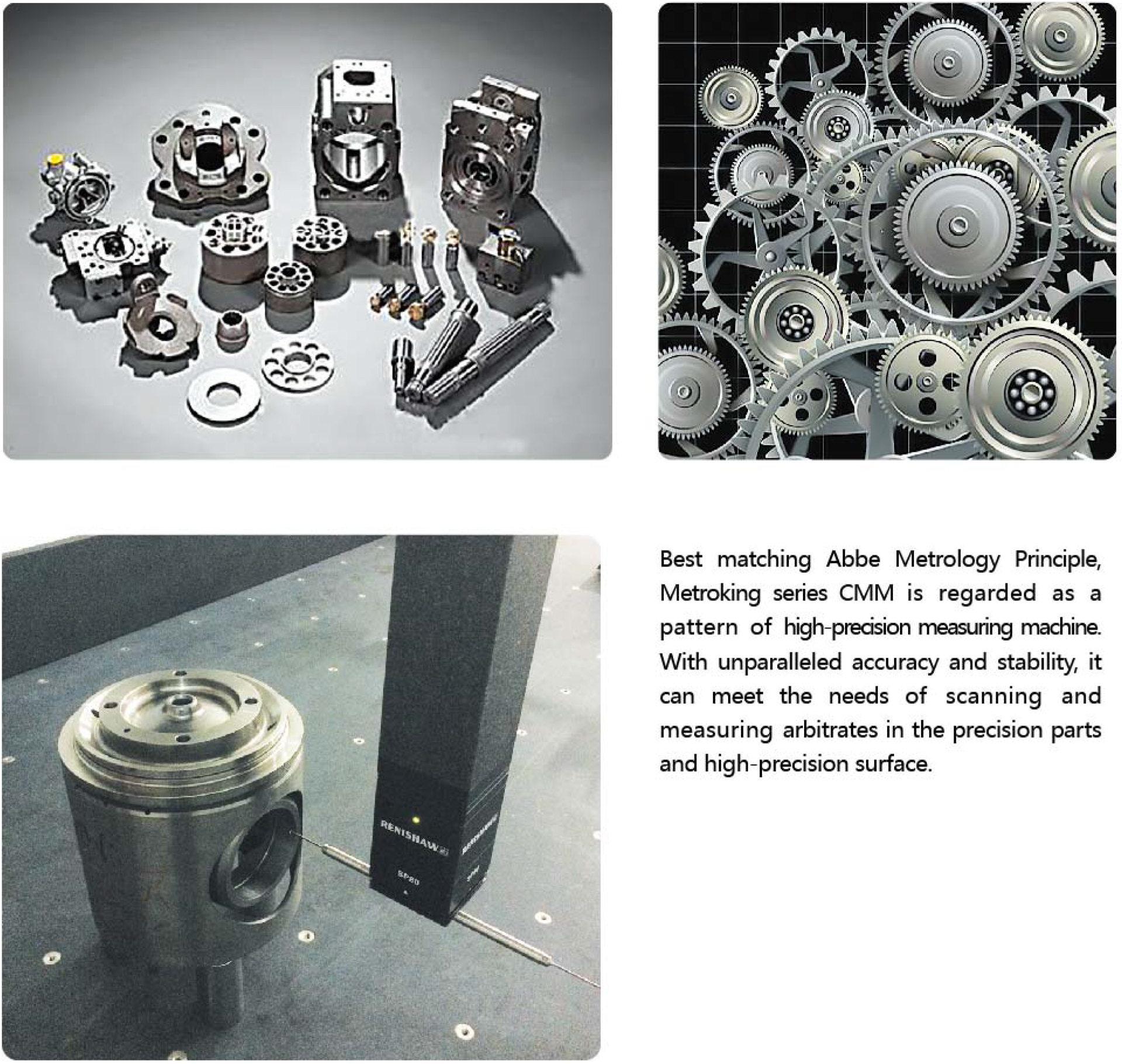

Best matching Abbe Metrology Principle, Metroking series CMM is regarded as a pattern of high-precision measuring machine. With unparalleled accuracy and stability, it can meet the needs of scanning and measuring arbitrates in the precision parts and high-precision surface.
| MODEL | STROKES | MEASURING ACCURACY | OVERALL SIZE | WORK ENVELOPE | WEIGHT | PART WEIGHT | |||||||||
| ISO10360-2:2009/GB/T16857.2-2006 | |||||||||||||||
| X | Y | Z | S | Lx | Ly | Lz | Wx | Wy | Wz | ||||||
| mm | mm | mm | MPEE(μm) | MPEP(μm) | mm | mm | mm | mm | mm | mm | kg | kg | |||
| NCF553 | 500 | 500 | 300 | from0.7+L/1000 | from0.7 | 1600 | 1400 | 2550 | 600 | 600 | 400 | 6000 | 300 | ||
| NCF564 | 500 | 600 | 400 | from0.7+L/1000 | from0.7 | 1600 | 1600 | 2750 | 600 | 700 | 500 | 6200 | 350 | ||
| NCF686 | 600 | 800 | 600 | from0.8+L/1000 | from0.8 | 1700 | 2000 | 3150 | 700 | 900 | 700 | 7200 | 600 | ||
| NCF8106 | 800 | 1000 | 600 | from0.8+L/1000 | from0.8 | 1900 | 2400 | 3150 | 900 | 1100 | 700 | 7800 | 700 | ||
